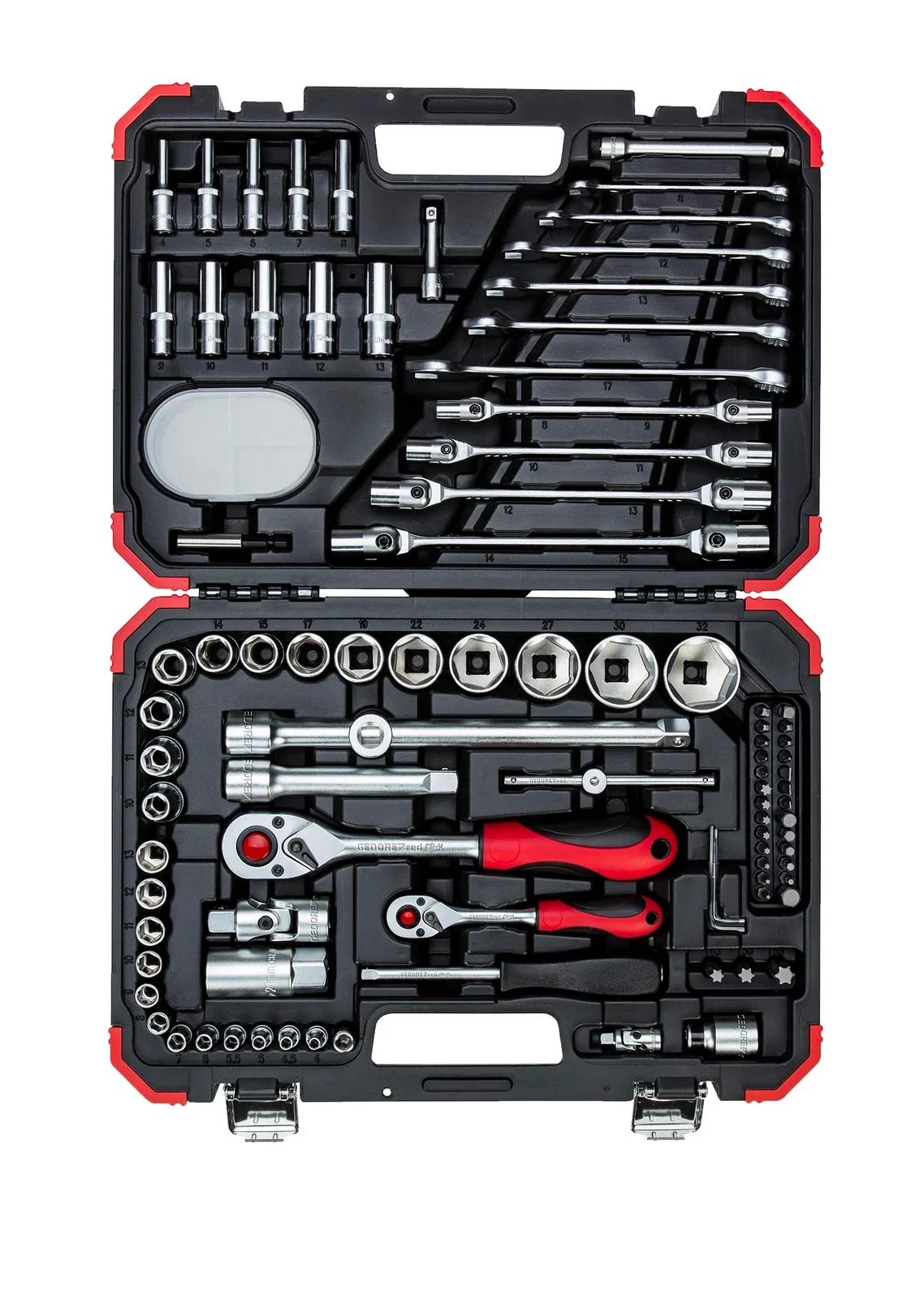

GEDORE RED SOCKET SET 1/4+1/2 92 PCE

Coupler in acc. with DIN 3120, ISO 1174, with ball locking device

Square drive as per DIN 3120, ISO 1174, with ball retention groove

2C reversible ratchet: lever for reversing clockwise or anticlockwise direction, push-button release, fine-toothed, oval head, dual-material handle for ease in gripping, for sockets

Square plug-in handle 1/4 inch: 1-component handle with female square

Socket 1/4 inch plus 1/2 inch: hex, metric, as per DIN 3124, ISO 2725

Spark plug socket 1/2 inch with pressed-in holding rubber and extra drive hex Size 23

Socket extension 1/4 inch plus1/2 inch

Sliding T-bar with slider 1/4 inch: as per DIN 3122, ISO 3315

Universal joint 1/4 inch plus 1/2 inch: screwed-on joint, as per DIN 3123 – C 12.5

Convertor/slider 3/8 inch x 1/2 inch: for driving sockets and screwdriver bit sockets

Bit adaptor 1/4 inch: with in-hex and female square, for all bits and tools with 1/4 inch external hex

Bit adaptor 1/2 inch: with in-hex and female square, for all bits and tools with 5/16 inch external hex

Bit holder with magnet 1/4 inch: machine-operated, as per DIN 7427

Bit 1/4 inch: hex, slotted, PH, PZ, TX for holder as per DIN ISO 1173 – D 6,3

Bit 5/16 inch: TX for holder as per DIN 1173, ISO 8

Double swivel-head wrench: bi-hex, metric, screwed on joint

Combination spanner: as per DIN 3113, Form A, ISO 3318, ISO 7738, 15° ring side angle, 15 degrees jaw position

Hexagon socket key set: as per DIN ISO 2936

Plastic magazine for small parts

For hand-operated screw work

Chrome vanadium steel, matt satin chrome-plated

Plastic case in GEDORE red Design

Clamp secured tools

Metal hinges or fastener

Contents

1/4 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length 150 mm

1/4 inch square plug-in handle 165 mm

1/4 inch socket hexagon 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13 mm

1/4 inch socket hexagon 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm – length 50 mm

1/4 inch socket extension 50, 100 mm

1/4 inch sliding T-bar with slider – length 115 mm

1/4 inch universal joint 32 mm

Bit holder 1/4 inch hex x 1/4 inch hex with magnet – length 60 mm

Bit adapter 1/4 inch sq. x 1/4 inch hex 25 mm

Drive adapter 1/4 inch hex x square with ball lock 25 mm

1/4 inch bits in-hex 3, 4, 5, 6, 8, 10 – length 25 mm

1/4 inch bits slotted 4, 5.5, 7 – length 25 mm

1/4 inch bits cross-head PH 0, 1, 2, 3, 4 – length 25 mm

1/4 inch bits cross-head PZ 1, 2, 3 – length 25 mm

1/4 inch bits TX T8, T10, T15, T20, T25, T27, T30, T40 – length 25 mm

5/16 inch bits socket TX T45, T50, T55 – length 30 mm

1/2 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length 250 mm

1/2 inch socket hexagon 10, 11, 12, 13, 6, 15, 17, 19, 22, 24, 27, 30, 32 mm

1/2 inch spark plug socket 21 mm, 13/16 inch – length 65 mm

1/2 inch socket extension 125 250 mm

1/2 inch universal joint 65 mm

Socket extension piece/slider 3/8 inch x 1/2 inch – length 44 mm

Bit adapter 1/4 inch square x 5/16 inch hex – length 38 mm

Double swivel head wrenches 8×9, 10×11, 12×13, 14×15 mm

Combination spanners 8, 10, 12, 13, 14, 17mm

Hexagon socket key 1.5, 2, 2.5 mm
