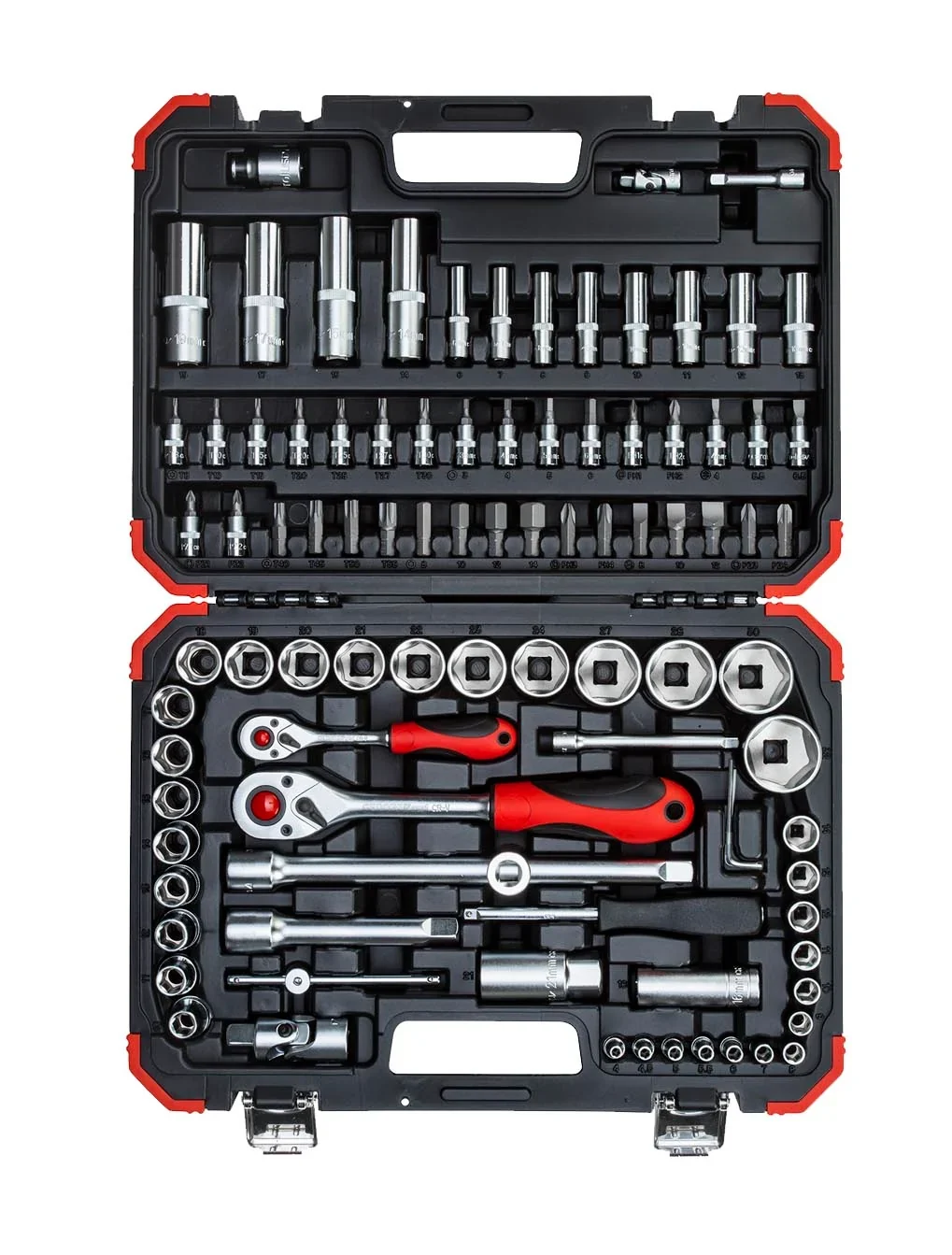

GEDORE RED SOCKET SET 1/4+ 1/2 94PCE

Coupler in acc. with DIN 3120, ISO 1174, with ball locking device

Square drive as per DIN 3120, ISO 1174, with ball retention groove

2C reversible ratchet: lever for reversing clockwise or anticlockwise direction, push-button release, fine-toothed, oval head, dual-material handle for ease in gripping, for sockets

Square plug-in handle 1/4 inch: 1-component handle with female square › Socket 1/4 inch + 1/2 inch: hex, metric, short, as per DIN 3124, ISO 2725

Socket 1/4 inch + 1/2 inch: hex, metric, long, as per DIN 3124, ISO 2725

Spark plug socket 1/2 inch with pressed-in holding rubber

Spark plug socket 1/2 inch with pressed-in holding rubber and extra drive hex Size 24

Screwdriver bit socket 1/4 inch, for hex screws: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch, slotted: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch PH: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch PZ: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch TX: with pressed-in, phosphated pin

Socket extension 1/4 inch+1/2 inch

Sliding T-bar with slider 1/4 inch: as per DIN 3122, ISO 3315

Universal joint 1/4 inch + 1/2 inch: screwed-on joint, as per DIN 3123 – C 12.5

Convertor/slider 3/8 inch x 1/2 inch: for driving sockets and screwdriver bit sockets

Bit adaptor 1/2 inch, with female square and in-hex, for all bits and tools with 5/16 inch external hex

Bit 5/16 inch: hex, slotted, PH, PZ, TX for holder as per DIN ISO 1173 – D 8

Hexagon socket key set: as per DIN ISO 2936

For hand-operated screw work

Chrome vanadium steel, matt satin chrome plated

Plastic case in GEDORE red Design

Clamp secured tools

Metal hinges or fastener

Contents

1/4 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – 150 mm

1/4 inch square plug-in handle 165 mm

1/4 inch socket hexagon 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 – length 25 mm

1/4 inch screwdriver bit socket in-hex 4 4 5 6 – length 37 mm

1/4 inch screwdriver bit socket slotted 4, 5.5, 6.5 – length 37 mm

1/4 inch screwdriver bit socket cross-head PH 1, 2 – length 37 mm

1/4 inch screwdriver bit socket cross-head PZ 1, 2 – length 37 mm

1/4 inch screwdriver bit socket TX T8, T10, T15, T20, T25, T27, T30 – length 37 mm

1/4 inch socket extension 50 100 mm

1/4 inch sliding T-bar with slider – 115 mm

1/4 inch universal joint – 32 mm

5/16 inch bits in-hex 8, 10, 12, 14 – 30 mm

5/16 inch bits slotted 8, 10, 12 – 30 mm

5/16 inch bits cross-head PH 3, 4 – 30 mm

5/16 inch bits cross-head PZ 3, 4 – 30 mm

5/16 inch bits TX T40, T45, T50, T55 – 30 mm

1/2 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – 250 mm

1/2 inch socket hex 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 28, 30, 32

1/2 inch socket hexagon 14, 15, 17, 19 – length 77 mm

1/2 inch spark plug socket 16 21 mm – length 65 mm

1/2 inch socket extension 125 – length 250 mm

1/2 inch universal joint 66 mm

Socket extension piece/slider 3/8 inch x 1/2 inch – length 44 mm

Bit adapter 1/4 inch square x 5/16 inch hex – length 38 mm

Hexagon socket key set 1.5, 2, 2.5 mm
