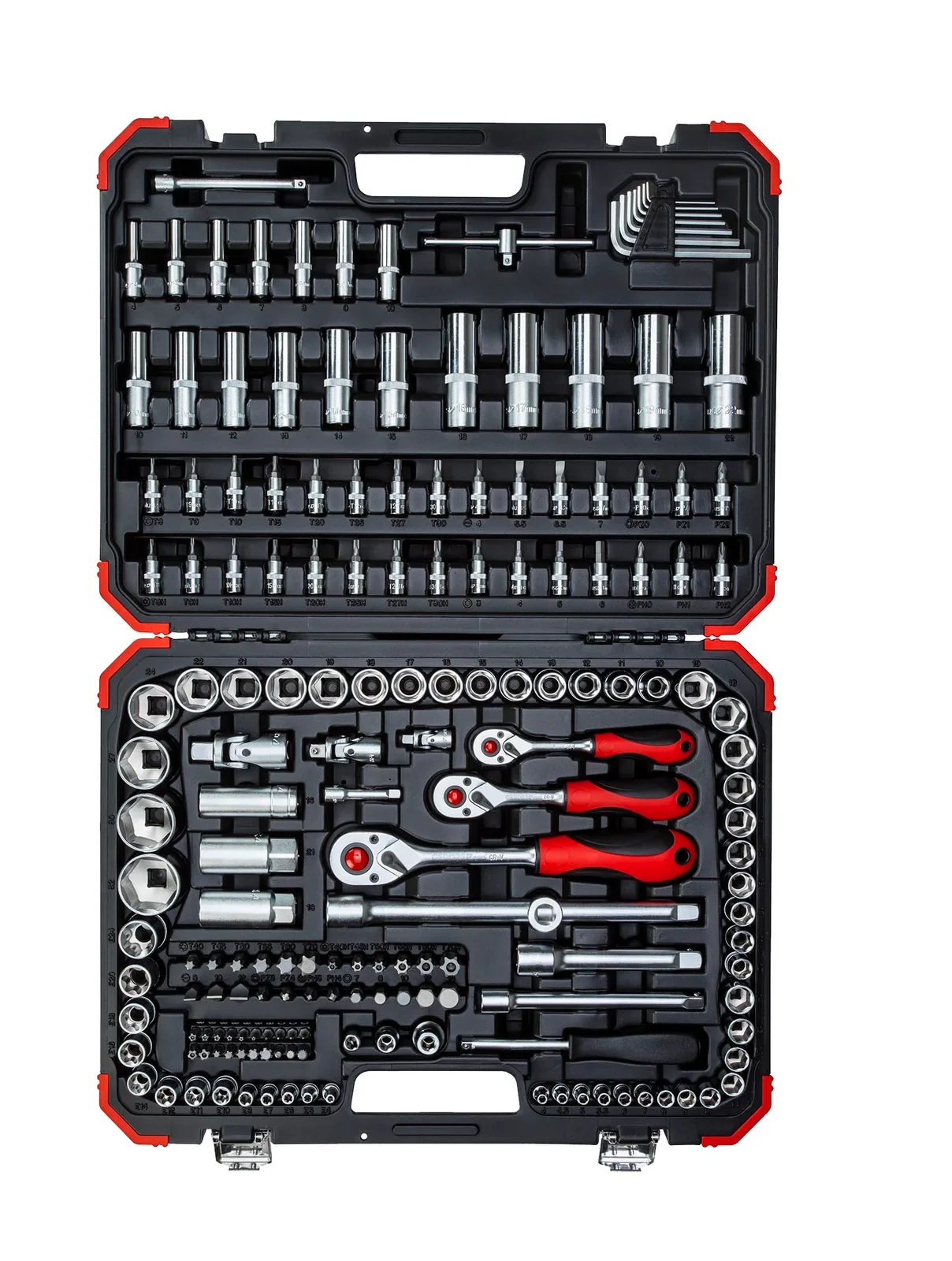

GEDORE RED SOCKET SET 1/4+ 3/8+1/2172PCE

Coupler in acc. with DIN 3120, ISO 1174, with ball locking device

Square drive as per DIN 3120, ISO 1174, with ball retention groove

2C reversible ratchet: lever for reversing clockwise or anticlockwise direction, push-button release, fine-toothed, oval head, dual-material handle for ease in gripping, for sockets

Square plug-in handle 1/4 inch: 1-component handle with female square

Socket hex, metric, short, as per DIN 3124, ISO 2725

Socket hex, metric, long, as per DIN 3124, ISO 2725

Socket, recessed TX

Spark plug socket 3/8 inch with pressed-in holding rubber and extra drive hex Size 21

Spark plug socket 1/2 inch with pressed-in holding rubber

Spark plug socket 1/2 inch with pressed-in holding rubber and extra drive hex Size 24

Screwdriver bit socket 1/4 inch, for hex screws: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch, slotted: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch PH: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch PZ: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch TX: with pressed-in, phosphated pin

Screwdriver bit socket 1/4 inch TX: with drill hole, with pressed-in, phosphated pin

Sliding T-bar with slider 1/4 inch: as per DIN 3122, ISO 3315

Socket extension 1/4 inch + 3/8 inch + 1/2 inch

Universal joint 1/4 inch + 3/8 inch + 1/2 inch: screwed-on joint, as per DIN 3123 – C 12.5

Convertor/slider 3/8 inch x 1/2 inch: for driving sockets and screwdriver bit sockets

Bit adaptor 1/4 inch: with female square and in-hex, for all bits and tools with 1/4 inch external hex

Bit adaptor 3/8 inch: with female square and in-hex, for all bits and tools with 5/16 inch external hex

Bit adaptor 1/2 inch: with female square and in-hex, for all bits and tools with 5/16 inch external hex

Bit 1/4 inch, TX: TX BO, TX security, BO, keyway, XZN for holder as per DIN 1173, ISO 6.3

Bit 5/16 inch: in-hex, slotted, PH, TX, TX BO for holder as per DIN ISO 1173 – D 8

Hexagon socket key set: as per DIN ISO 2936

For hand operated screw work

Chrome vanadium steel, matt satin chrome plated

Plastic case in GEDORE red Design

Clamp secured tools

Metal hinges or fastener

Contents

1/4 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length 150 mm

1/4 inch square plug-in handle 165 mm

1/4 inch socket hexagon 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 – length 25 mm

1/4 inch socket hexagon 4, 5, 6, 7, 8, 9, 10 – length 50 mm

1/4 inch socket TX E4, E5, E6, E7, E8 – length 25 mm

1/4 inch screwdriver bit socket in-hex 4 4 5 6 – length 37 mm

1/4 inch screwdriver bit socket slotted 4, 5.5, 6.5, 7 – length 37 mm

1/4 inch screwdriver bit socket cross-head PH 0, 1, 2 – length 37 mm

1/4 inch screwdriver bit socket cross-head PZ 0, 1, 2 – length 37 mm

1/4 inch screwdriver bit socket TX T8, T9, T10, T15, T20, T25, T27, T30 – length 37 mm

1/4 inch screwdriver bit socket TX with drill hole T8, T9, T10, T15, T20, T25, T27, T30 – length 37 mm

1/4 inch socket extension 50 – length 100 mm

1/4 inch sliding T-bar with slider – length 115 mm

1/4 inch universal joint | 32 mm

Bit adapter 1/4 inch sq. x 1/4 inch hex – length 25 mm

1/4 inch bits TX T5, T6, T7 – length 25 mm

1/4 inch bits TX with drill hole T7 – length 25 mm

1/4 inch bits TX plus security T10, T15, T20, T25, T27, T30, T40, T45 – length 25 mm

1/4 inch bits multi-point XZN M5, M6, M8 – length 25 mm

1/4 inch bits keyway M5, M6, M7, M8, M9 – length 25 mm

5/16 inch bits in-hex 7, 8, 10, 12, 14 – length 30 mm

5/16 inch bits slotted 8, 10, 12 – length 30 mm

5/16 inch bits cross-head PH 3, 4 – length 30 mm

5/16 inch bits cross-head PZ 3, 4 – length 30 mm

5/16 inch bits TX T40, T45, T50, T55, T60, T70 – length 30 mm

5/16 inch bits TX with drill hole T40, T45, T50, T55, T60, T70 – length 30 mm

3/8 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length 180 mm

3/8 inch socket hexagon 10, 11, 12, 13, 14, 15, 16, 17, 18, 19

3/8 inch socket hexagon 10, 11, 12, 13, 14, 15 – length 63 mm

3/8 inch socket TX E10, E11, E12, E14, E16, E18

3/8 inch spark plug socket 18 mm – length 65 mm

3/8 inch socket extension 150 mm

3/8 inch universal joint 49 mm

Bit adapter 3/8 inch square x 5/16 inch hex – length 30 mm

1/2 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length 250 mm

1/2 inch socket hexagon 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32

1/2 inch socket hexagon 16, 17, 18, 19, 22 – length 77 mm

1/2 inch socket 1/2 TX E20, E24

1/2 inch spark plug socket 16, 21 mm | 65 mm

1/2 inch socket extension 125, 250 mm

1/2 inch universal joint 66 mm

Socket extension piece/slider 3/8 inch x 1/2 inch – length 44 mm

Bit adapter 1/2 inch square x 5/16 inch hex – length 38 mm

Hexagon socket key 1.5, 2, 2.5, 3, 4, 5, 6 mm
