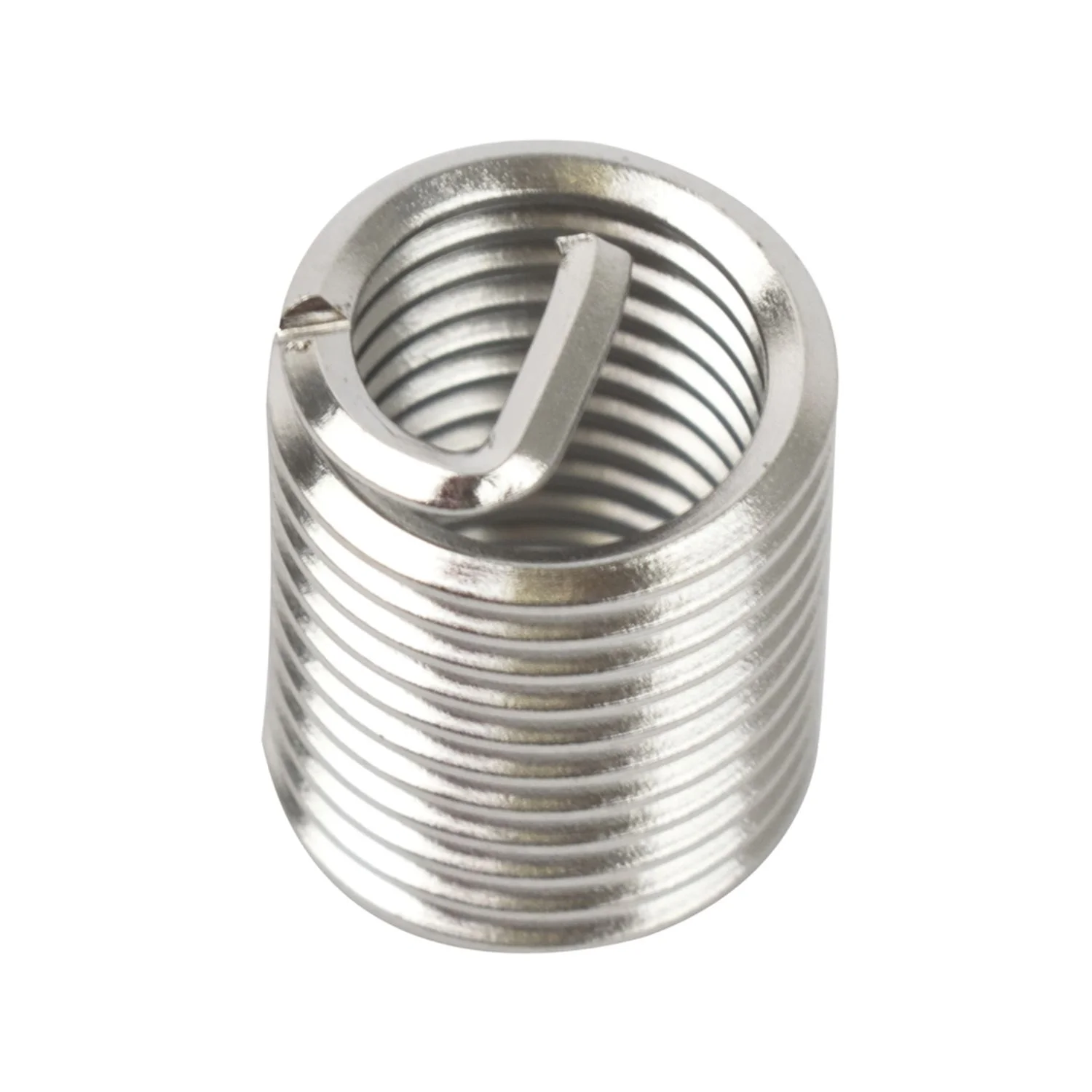

THREAD REPAIR KIT M10 X 2D REPLACEMENT INSERTS 5PCE

Thread Reair insert M10 x 1,5mm x 2D

Works with Kit NR8012 or NR5012Thread length: 20 mmQty: 5 Pieces

Restore stripped threads easily and permanently with Tork Craft thread repair kits. Tork Craft application-specific thread repair kits make complex repairs simple and are a recommended solution by automakers.

Tork Craft inserts are for permanently repairing tapped holes which have been stripped or damaged due to wear, corrosion, and over-torqing.

Available in M4, M5, M6, M8, M10 and M12 and in three thread lengths per thread size.

A quality product by Tork Craft

Let’s make sense of the numbers:

Example:

M4 x 0.7 x 1.0D

M4: The Metric value of the required thread i.e. Metric 4mm
0.7: This is the pitch of the thread
1.0D: this is the installed length of the insert after installation.

Determining the installed length:

M4 x 1.0D = 4mm deep
M4 x 1.5D = 6mm deep
M4 x 2.0D = 8mm deep

Thus, the depth (length) of the installed insert will be the metric diameter of the thread (in this case M4)multiplied by the “D” value.
