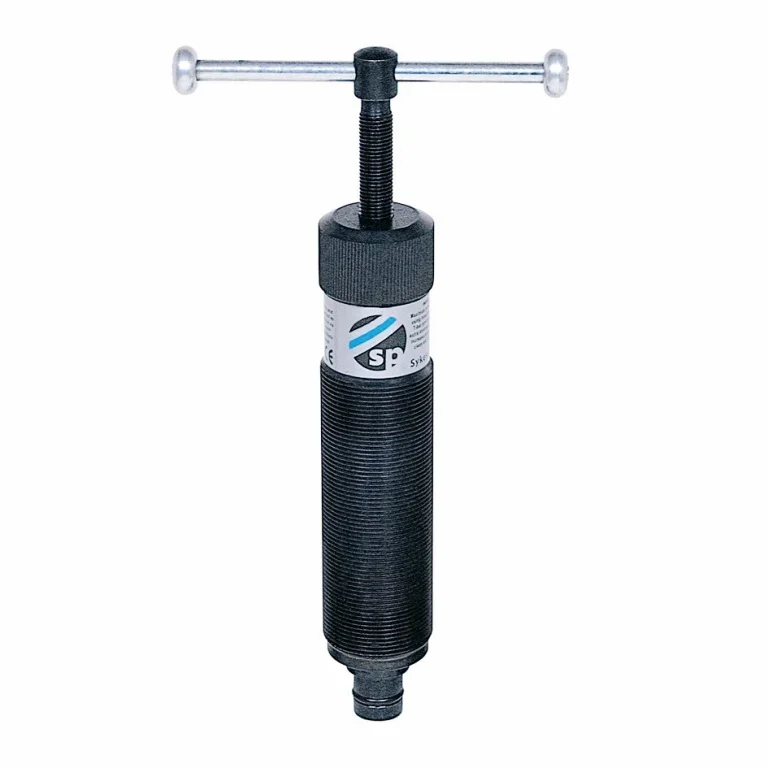

SYKES PULLER RAM HYD

Standard power unit for SP hydraulic pulling options and can also be used with many alternative SP puller applications e.g. 3 leg pullers, ball joint pullers, hub pullers, suspension bush removers etc

Diameter 1 1/2 inch

Thread 16Tpi Whitworth

Grease filled

Direct force improves stability under load

Provides maximum withdrawal force of 80kN

New hex head makes it possible to increase pre-load capability up to 4 tonnes – with the use of a 30mm wrench

When hydraulic power is applied, the full force is achieved with little loss of ram travel

As the workpiece starts to release, more stroke and power can be applied to ensure a good safe removal

THREAD: 16TPI Whitworth

MAXIMUM WITHDRAWAL FORCE: 80kN
