EUROBOOR SMART MAGNECTIC DRILL 100MM

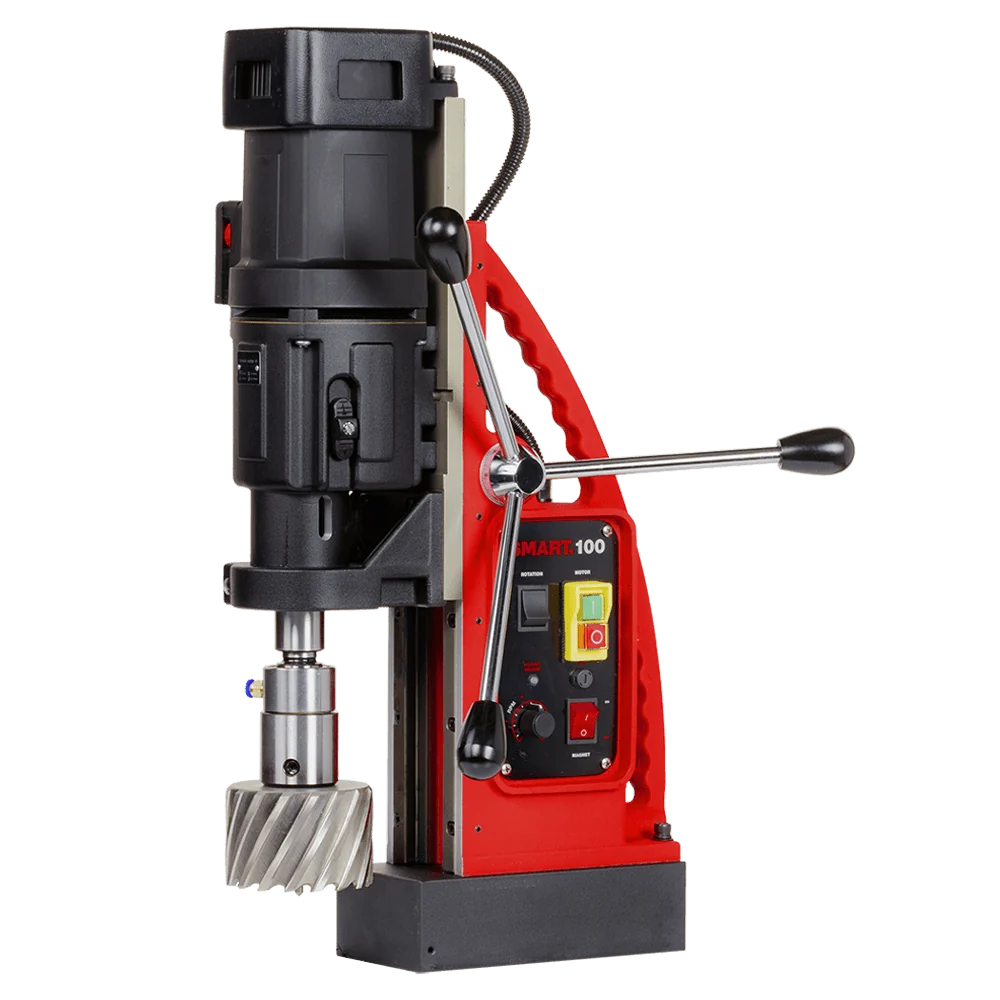

SMART.100 Magnetic Drilling Machine 100mm

Meet the 28 kg or 61.7 lbs heavy weight champion in magnetic drilling: the magnificent SMART.100! This powerhouse achieves perfect Ø 100 mm or 4 inch diameter holes in no-time. With this beautiful machine, you benefit from an engine that is not only powerful, but also very efficient. The SMART.100 is the most economic machine in its range for this type of work.

Key Features:

Four-speed gearbox

Treading

2500 kg or 5512 lbs magnetic force

Energy saving motor – more power output – less money

Technical Data:

ANNULAR CUTTERS Ø 12 – 100 mm

TWIST DRILLS Ø 1 – 31.75 mm

Threading M3 – M30

COUNTERSINKING Ø 10 – 105 mm

LENGTH 340 mm

WIDTH 310 mm

HEIGHT 510 – 710 mm

STROKE 260 mm

WEIGHT 28 kg

MAGNET (L x W x H) 220 x 110 x 64 m

MAGNETIC FORCE 2,500 kg

Motor Power 1,800 W 16.4 A

Total Power 1,950 W 17.7 A

SPEED (no load) (I) 40 – 110 rpm

(II) 65 – 180 rpm

(III) 140 – 380 rpm

(IV) 220 – 610 rpm

SPEED 1,800 W (loaded) (I) 85 rpm

(II) 152 rpm

(III) 270 rpm

(IV) 480 rpm

SPINDLE WELDON MT3 19.05 mm MT3 3/4″

POWER SOURCE 110 – 120V AC 60 Hz

220 – 240V AC 50 – 60 Hz
