EUROBOOR MAGNETIC DRILL 36MM LOW PROF 1050W

Euroboor Magnetic Drill Low Profile 1050W

Low Profile Magnetic Drilling Machine

12 – 36mm

10.3kg

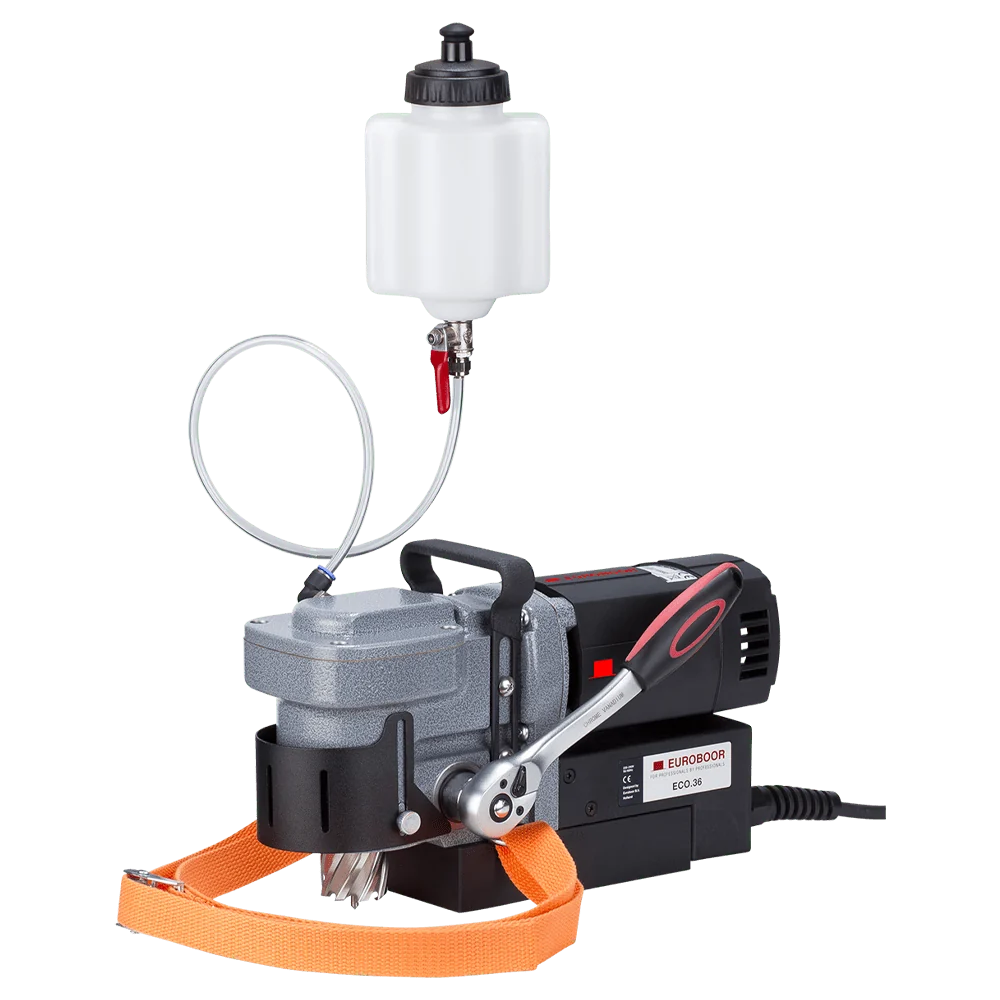

The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm in height

This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc

The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation

Features:

Temptec

Integrated motor cable

One-speed grearbox

User friendly Quick-Connect cutter fitment system

Carrying handle and safety strap attachment

Right and left mount ability of detachable ratchet feed handle

Integrated tool cooling and lubrication

Removable and slidable safety guard

Lubrication bottle with magnet attachment

Strong dual coil CNC machined, causing the machine to use less energy, generate less heat and therefore lasts longer

ANNULAR CUTTING: 12 – 36mm diameter

TWIST DRILLING – WELDON: 1 – 14mm diameter

COUNTERSINKING: 10 – 40mm diameter

IN-CORNER DRILLING: 0 degrees – 50mm centre to edge

90 degrees – 53mm centre to edge

45 degrees – 60mm centre to edge

STROKE: 40mm

MAGNET – L X W X H: 80 x 160 x 37mm

MAGNETIC FORCE: 1 200kg

Motor Power: 1 050W

Total Power: 1 100W

SPEED – NO LOAD: 700 rpm

SPEED – LOAD 1050W: 400 rpm

SPINDLE: 19.05mm

VOLTAGE: 220 – 240V / 50 – 60Hz
