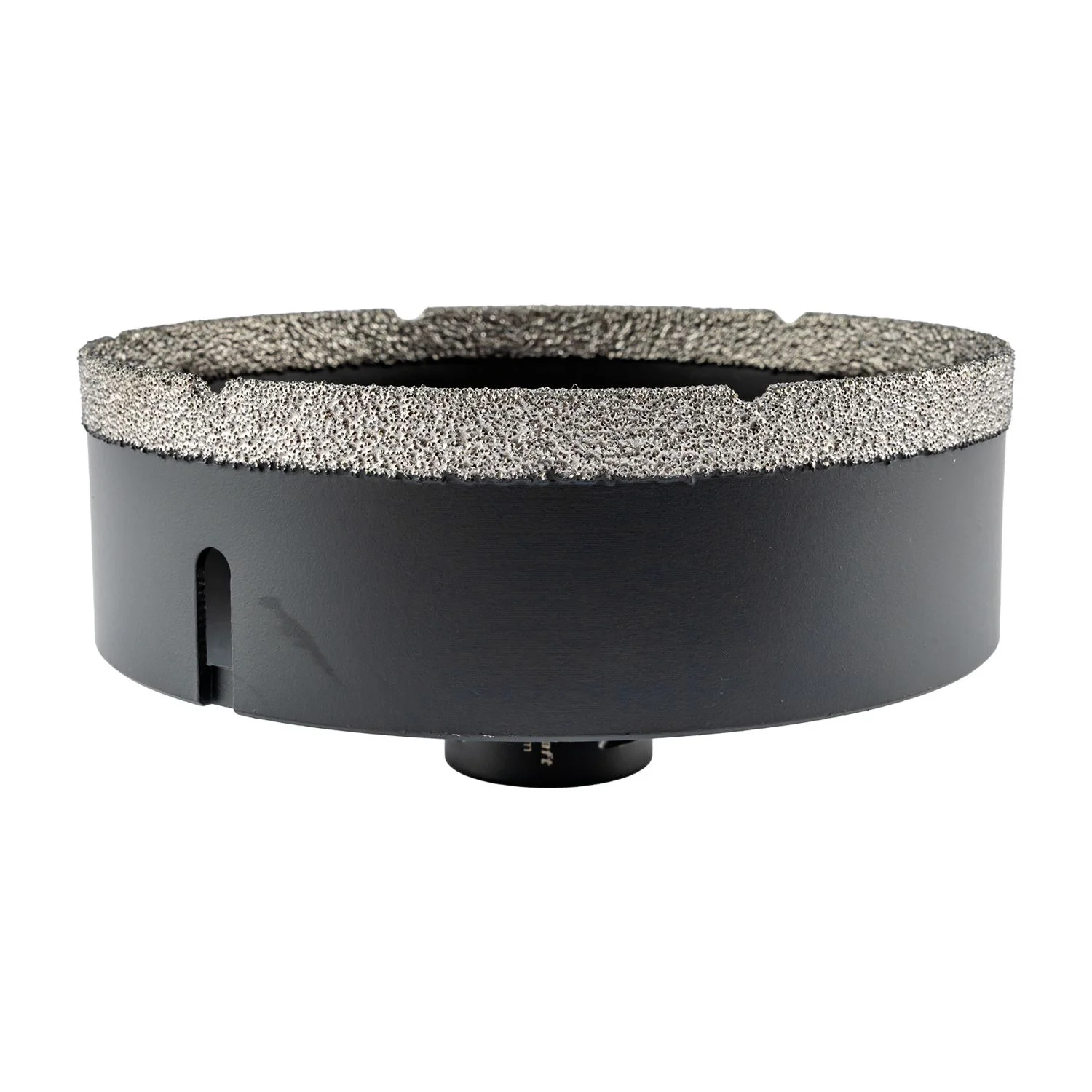

DIAMOND CORE BIT 127MM X 40MM M14 X 60MM VACUUM BRAZED

Diamond Core Bit

Diameter:127mm
Working Length:40mm
Overall Length:60mm

This 127mm x 40mm M14 Vacuum Brazed Diamond Core Bit is a massive, industrial-grade boring tool engineered to cut large-diameter holes with absolute precision through exceptionally hard materials. Utilizing advanced vacuum brazing technology, high-concentration premium diamond crystals are fused under extreme heat directly to the heavy-duty steel body. This creates an ultra-durable bond that offers lightning-fast cutting speeds, high thermal resistance, and an exceptionally long service life compared to traditional sintered or electroplated hole saws. Featuring a wide 127mm cutting diameter, a 40mm working depth optimized for deep slabs, and an M14 thread connection, it mounts directly onto standard high-RPM angle grinders, providing stable, high-torque drilling without the need for secondary adapters.

Application:

• Used to drill holes in ceramic tiles, granite, marble work, quartz stone, brick, glass
• Construction
• Manufacturing
• DIY
