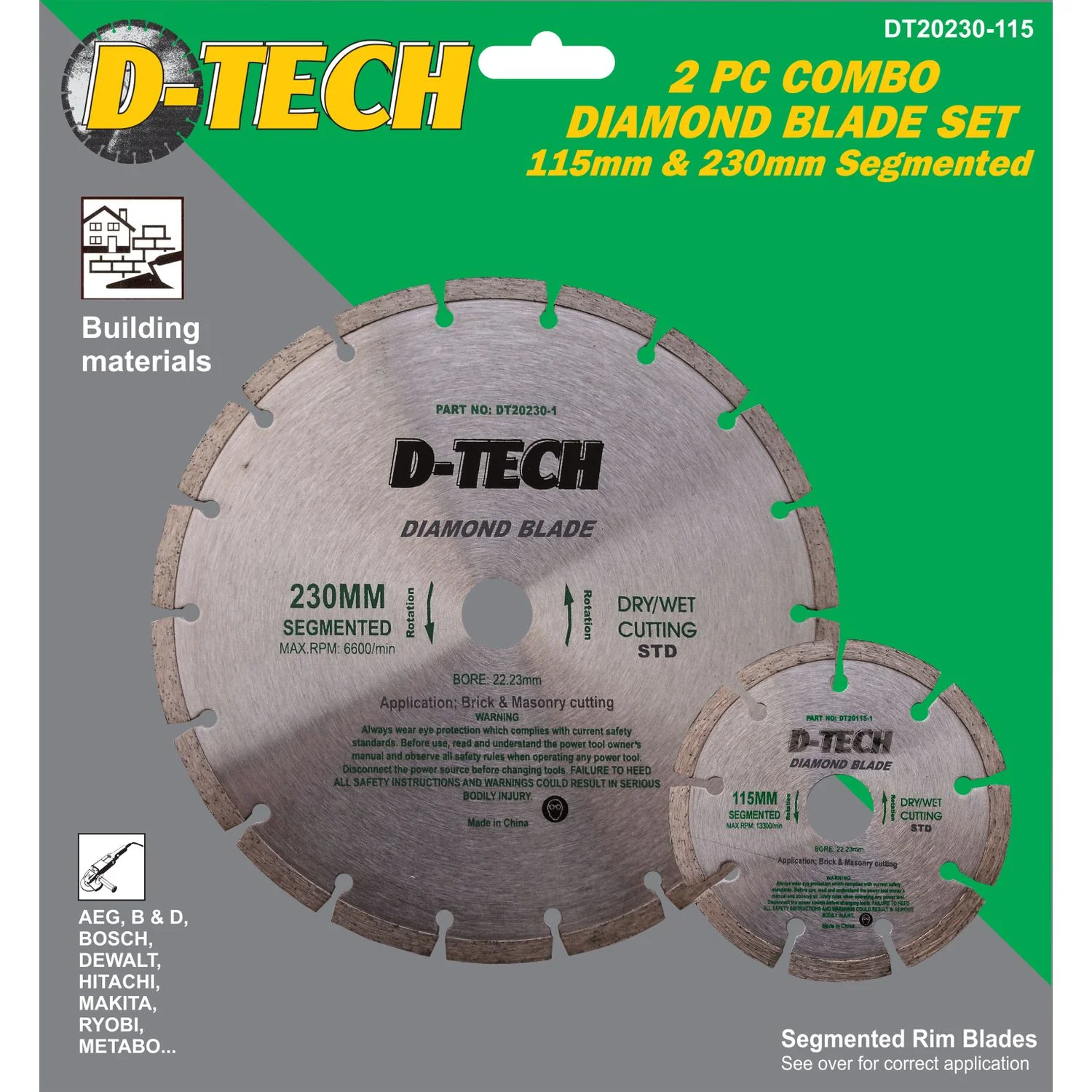

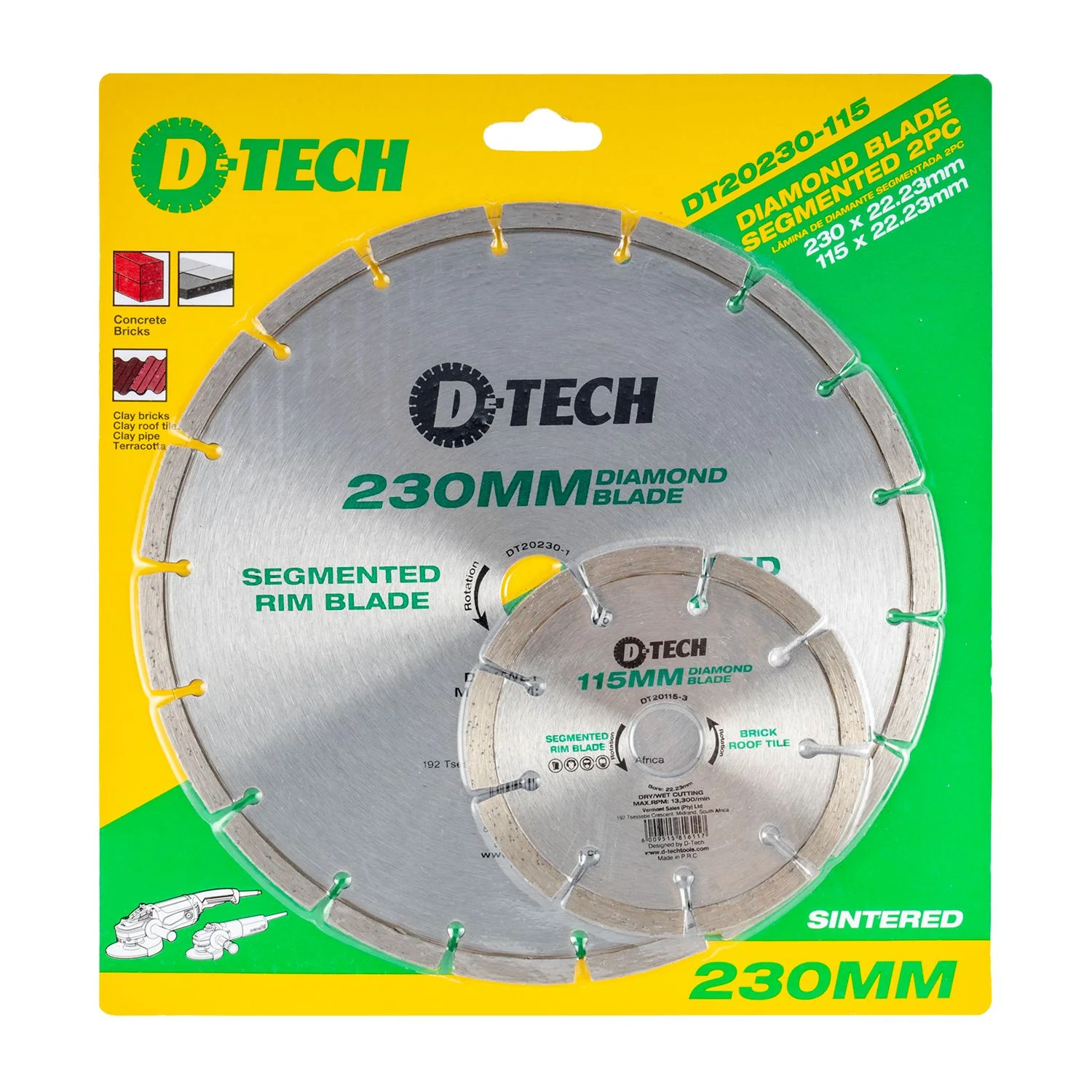

DIAMOND BLADE 230MMX22.22MM+115MMX22.2MM SEGEMENTED

Segmented diamond blades

Diameter: Ø230mm + Ø115mm
Bore: Ø22.23mm
Max rpm: 6,600 rpm for Ø230mm, 13,300 rpm for Ø115mm
Use: Concrete, brick, paving & building materials

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn’t available. The blades are durable and have a long life compared to other blades.
