BASIC STRUC. CO KV D8-50 DOMINO CONNECTORS CORNER CONNECTION

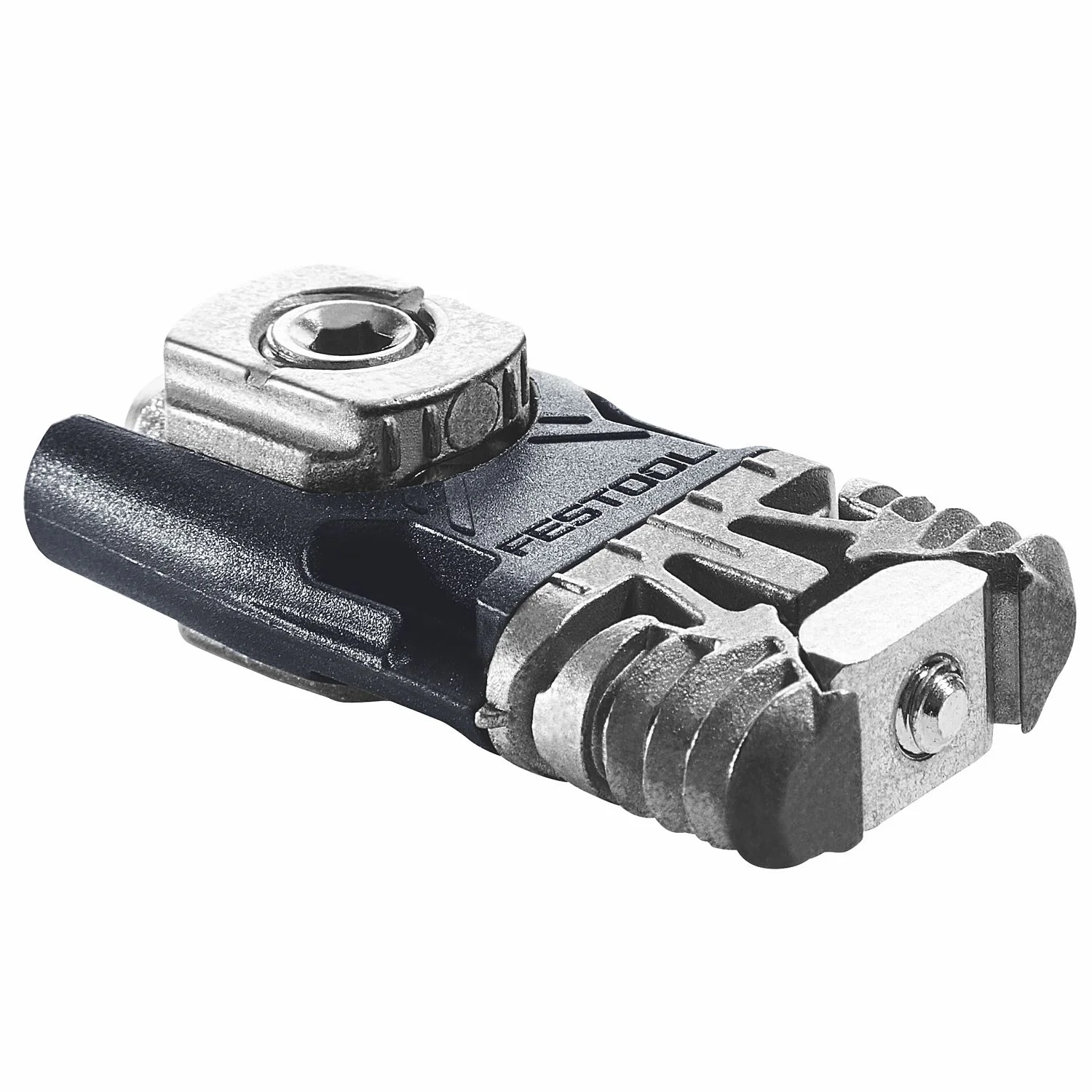

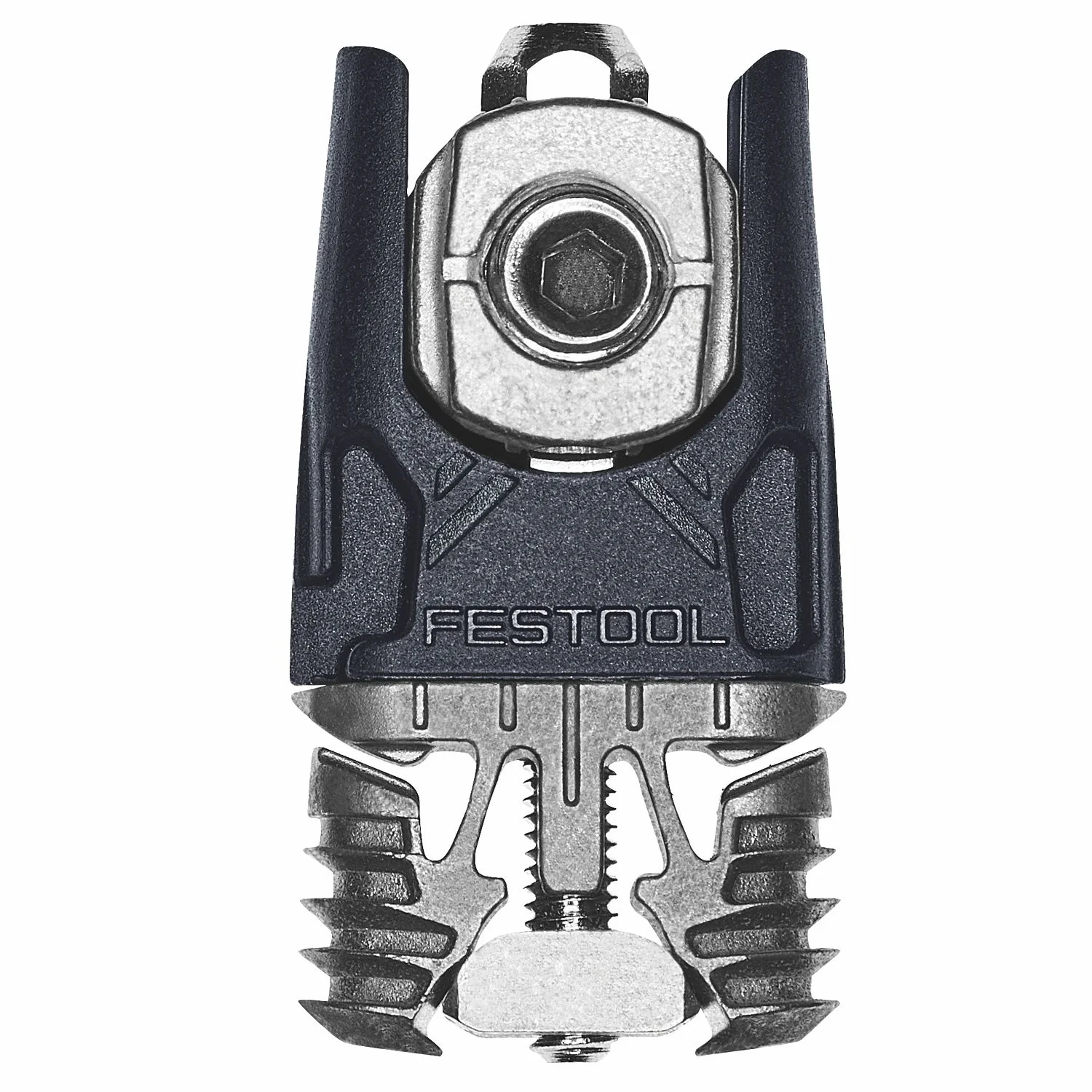

Festool KV D8/50 DOMINO Corner Connector Set

At a Glance:Detachable DOMINO corner connector system for producing 50 strong and accurately aligned furniture joints in panels from 18–28mm thick.

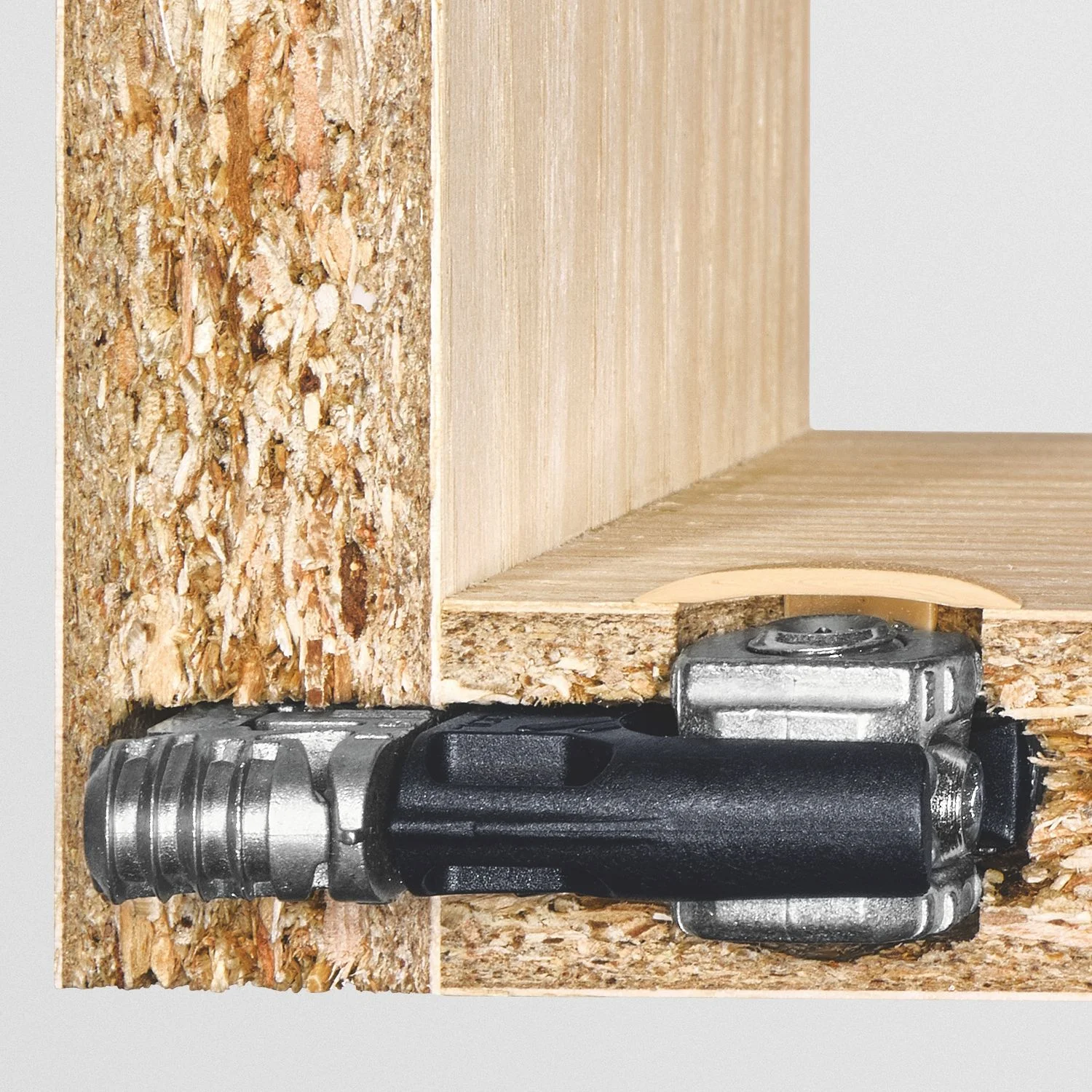

Create strong furniture corner joints that can be assembled, dismantled and reassembled with the Festool KV D8/50 DOMINO Corner Connector Set. Designed for use with the Festool DF 500, DF 500 R and DFC 500 joining machines, the system combines the speed and positioning accuracy of DOMINO routing with a robust mechanical connector. Both connector positions are routed directly into the cabinet side and base component, while a precisely positioned 15mm drilled hole provides access to the tightening mechanism. The connector’s generous tightening distance and long M4 bolt simplify furniture assembly, making it practical to assemble larger cupboards and cabinets without additional assistance. Integrated tolerance compensation accommodates routing and cutting variations of up to 1.4mm, while flush-mounted fastening elements help protect furniture components against scratching during transport and assembly.

Stable furniture construction that remains fully detachable

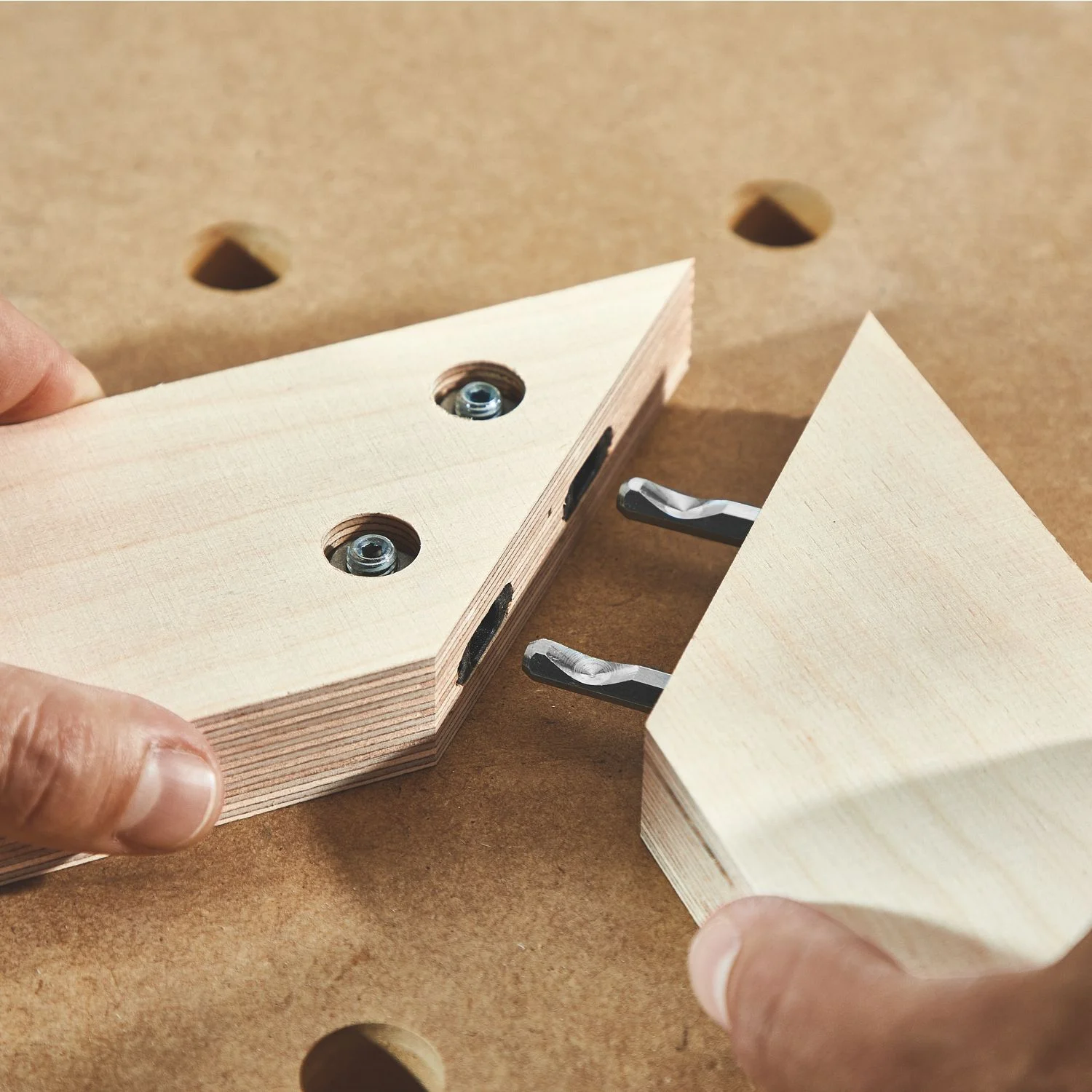

The KV D8/50 creates a secure corner connection without permanently locking the furniture components together. This allows cabinets, shelving and other panel furniture to be manufactured in the workshop, transported efficiently and assembled at the final installation location.

Product Highlights

• For 50 corner joints: Includes the connector components required to produce 50 detachable furniture connections.
• Stable yet removable: Provides a strong mechanical joint that can be repeatedly assembled and dismantled.
• Simple DOMINO positioning: Connector mortises are routed accurately using the familiar DOMINO joining process.
• Large tightening range: Long M4 bolts make it easier to draw furniture components together during assembly.
• Up to 1.4mm tolerance compensation: Helps accommodate small routing and cutting variations for seamless furniture assembly.
• Suitable for 18–28mm panels: Covers common cabinet, shelving and furniture panel thicknesses.
• Flush-mounted fittings: Connector elements sit within the components to reduce the risk of scratching during handling.
• Only three machining operations: The joint requires two DOMINO mortises and one correctly positioned drilled hole.
• No specialist joining machine required: All connector mortises are produced using a compatible DOMINO DF 500 system machine.
