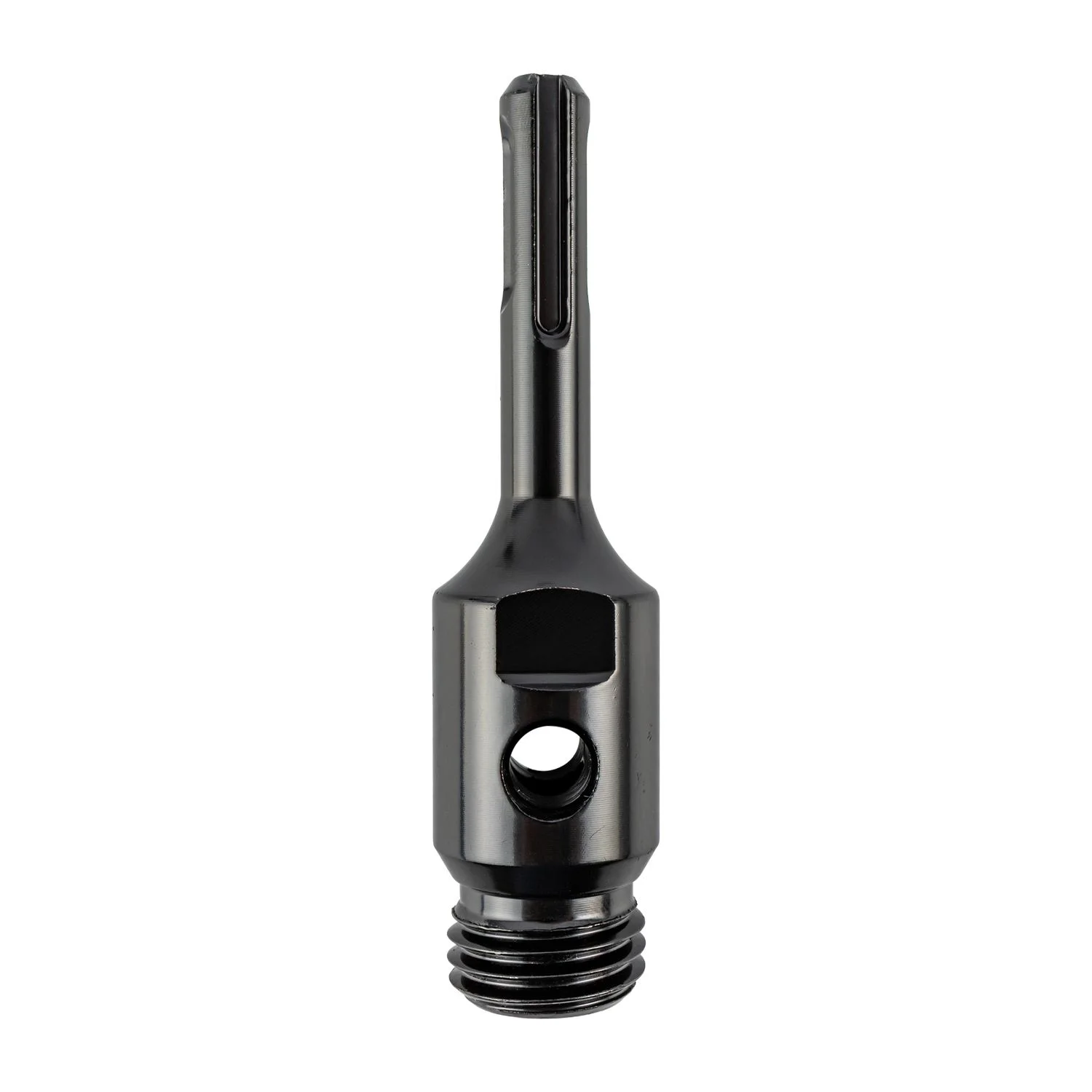

ADAPTOR SDS PLUS 70MMXM22 FOR DIAMOND CORE BITS

SDS Plus Adaptor for Diamond Core Bits

Thread size:M22
Total Length:70mm
Classification:Industrial (Blue)

The Adaptor SDS Plus 70mm x M22 for Diamond Core Bits is a precision-engineered coupling accessory that serves a critical purpose in professional drilling applications: converting connection types. This short, 70mm adaptor is specifically designed to allow contractors and tradespeople to utilize their existing SDS Plus rotary hammer drill for core drilling tasks.

Its function is to create a seamless mechanical bridge to the diamond tooling. On one end, the adaptor features the standardized SDS Plus shank profile, which securely locks into the chuck of the rotary hammer. On the other end, it provides the industry-standard M22 external thread, allowing it to easily accept and rigidly connect to a wide range of dry-cut diamond core drill bits.

Constructed from robust, high-grade steel, this adaptor ensures a strong, low-wobble connection, which is essential for accurate and efficient core drilling in hard materials like masonry and concrete. By converting the power tool’s output to the necessary core bit thread, this piece of hardware maximizes the utility of standard rotary hammer drills for specialized, high-torque coring jobs.

Application:

• Fit into the diamond core bits.
• The Drift key is a wedge used to remove the pilot drill from the Dry Cut Diamond Core Drill adaptor with a hammer. See illustration below.
• Plumbing
• Electrical
• Construction
• DIY

NOTE:
The pilot drill bit is not included with the adaptors and it is available separately – TC18PILOT
